STR4A162D, STR4A100 Off-Line PWM Controllers

Sanken

Description

Off-Line PWM Controllers with Integrated Power MOSFET STR4A100 Series Data Sheet .
The STR4A100 series are power ICs for switching power supplies, incorporating a sense MOSFET and a current mode PWM controller IC.

📥 Download Datasheet

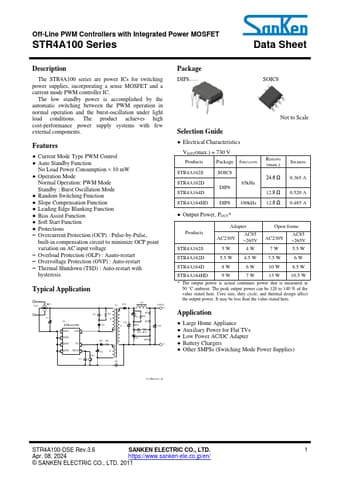

STR4A162D Datasheet Preview — This datasheet PDF includes multiple part numbers: STR4A162D, STR4A100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STR4A162D, STR4A100
Manufacturer: Sanken ↗
File Size: 581.84 KB
Datasheet: STR4A100-Sanken.pdf
Description: Off-Line PWM Controllers
Note: This datasheet PDF includes multiple part numbers: STR4A162D, STR4A100.
Please refer to the document for exact specifications by model.

Features

* Current Mode Type PWM Control
* Auto Standby Function No Load Power Consumption < 10 mW
* Operation Mode Normal Operation: PWM Mode Standby : Burst Oscillation Mode
* Random Switching Function
* Slope Compensation Function
* Leading Edge Blanking Function
* Bias Assist
