STR4A162S - Off-Line PWM Controllers

Product Overview

Sanken

📥 Download Datasheet

STR4A162S Off-Line PWM Controllers by Sanken - Datasheet Preview — Datasheet preview – STR4A162S

Datasheet Details

Part number	STR4A162S
Manufacturer	Sanken
File Size	581.84 KB
Description	Off-Line PWM Controllers
Datasheet	STR4A162S Datasheet
Note	This datasheet PDF includes multiple part numbers: STR4A162S, STR4A100. Please refer to the document for exact specifications by model.

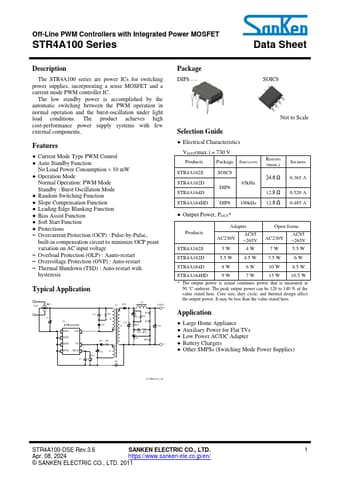

Additional preview pages of the STR4A162S datasheet.

Product details

Description

The STR4A100 series are power ICs for switching power supplies, incorporating a sense MOSFET and a current mode PWM controller IC.

Features

Current Mode Type PWM Control.
Auto Standby Function No Load Power Consumption < 10 mW.
Operation Mode Normal Operation: PWM Mode Standby : Burst Oscillation Mode.
Random Switching Function.
Slope Compensation Function.
Leading Edge Blanking Function.
Bias Assist Function.
Soft Start Function.
Protections.
Overcurrent Protection (OCP) : Pulse-by-Pulse, built-in compensation circuit to minimize OCP point variation on AC input voltage.
