STR-Y6763, STR-Y6700 Quasi-Resonant Controllers

STR-Y6763 Description

Quasi-Resonant Controllers with Integrated Power MOSFET STR-Y6700 Series General .
Package The STR-Y6700 series are power ICs for switching TO220F-7L power supplies, incorporating a MOSFET and a quasi-resonant controller IC.

STR-Y6763 Features

* Multi-mode Control s The optimum operation depending on load conditions e is changed automatically and is achieved high D efficiency operation across the full range of loads. w Operation Mode e Normal load

STR-Y6763 Applications

* U1 S R52 C53
* White goods STR-Y6700 D2 R2 C3 D C52 R53 U51 R56 VOUT(-)
* Office automation equipment
* Industrial equipment D/ST 2 S/OCP VCC GND FB/OLP BD NF 1 2 3 4 5 67 DZBD RBD1 ROCP R3 C4 C5 PC1 CBD RBD2 CY STR-Y6700 - DS Rev.4.2 SANKEN ELECTRIC CO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR-Y6763, STR-Y6700. Please refer to the document for exact specifications by model.

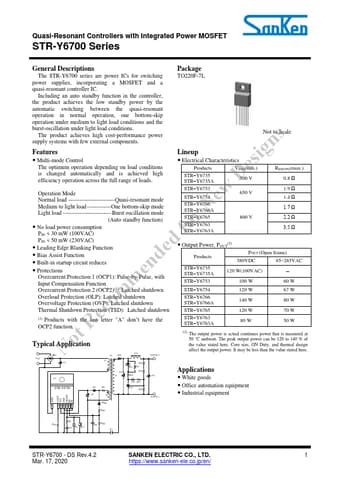

datasheet Preview Page 2 datasheet Preview Page 3
