STR-Z2586, STR-Z2500 - STR-Z2500 Series Power-IC

Sanken

The STR-Z2586 by Sanken is a STR-Z2500 Series Power-IC. Below is the official datasheet preview.

📥 Download Datasheet

STR-Z2586 STR-Z2500 Series Power-IC by Sanken - Datasheet Preview — Official preview page of the **STR-Z2586** STR-Z2500 Series Power-IC datasheet (Sanken).

Datasheet Details

Part number	STR-Z2586, STR-Z2500
Manufacturer	Sanken
File Size	129.86 KB
Description	STR-Z2500 Series Power-IC
Datasheet	STR-Z2500-Sanken.pdf
Note	This datasheet PDF includes multiple part numbers: STR-Z2586, STR-Z2500. Please refer to the document for exact specifications by model.

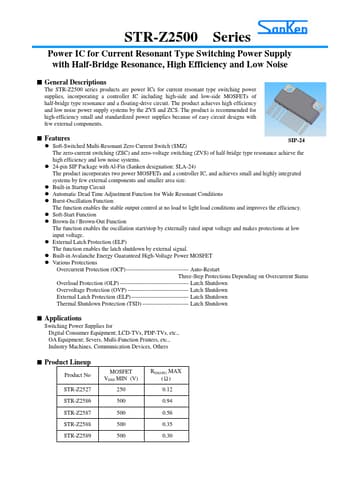

Additional preview pages of the STR-Z2586 datasheet.

STR-Z2586 Product details

Description

Series Power IC for Current Resonant Type Switching Power Supply with Half-Bridge Resonance, High Efficiency and Low Noise The STR-Z2500 series products are power ICs for current resonant type switching power supplies, incorporating a controller IC including high-side and low-side MOSFETs of half-bridge type resonance and a floating-drive circuit.The product achieves high efficiency and low noise power supply systems by the ZVS and ZCS.The product is recommended for high-efficiency small an

Features

s SIP-24 Soft-Switched Multi-Resonant Zero Current Switch (SMZ) The zero-current switching (ZSC) and zero-voltage switching (ZVS) of half-bridge type resonance achieve the high efficiency and low noise systems. 24-pin SIP Package with Al-Fin (Sanken designation: SLA-24) The product incorporates two power MOSFETs and a controller IC, and achieves small and highly integrated systems by few external components and smaller area size. Built-in Startup Circuit Automatic Dead Time Adjustment Function.
