STR3A461HL

Off-Line PWM Controller

STR3A461HL Features

* Bare Lead Frame: Pb-free (RoHS compliant)

* Low Thermal Resistance Package

* Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)

* Noise Reduction

* Current Mode Type PW

STR3A461HL General Description

The STR3A46xHL/HDL series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC. To enhance efficiency in all load ranges, the IC automatically shifts its operation to the green mode or burst oscillation mode, depending on the load. The product.

STR3A461HL Datasheet (703.86 KB)

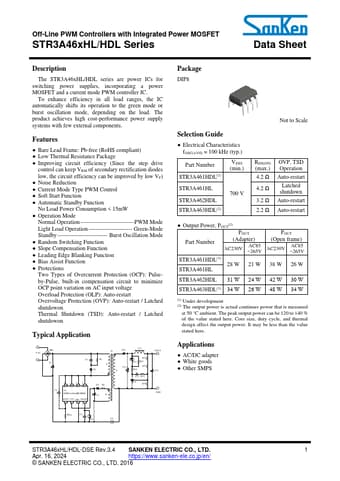

Preview of STR3A461HL PDF

Datasheet Details

Part number:

STR3A461HL

Manufacturer:

Sanken ↗

File Size:

703.86 KB

Description:

Off-line pwm controller.
