STR3A400 - Off-Line PWM Controllers

Sanken

📥 Download Datasheet

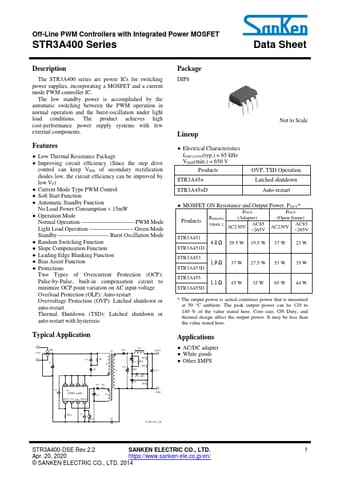

STR3A400 Datasheet Preview — Preview of STR3A400 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STR3A400
Manufacturer	Sanken ↗
File Size	865.02 KB
Description	Off-Line PWM Controllers
Datasheet	STR3A400-Sanken.pdf

STR3A400 Product details

Description

The STR3A400 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

Features

Low Thermal Resistance Package.
Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF).
Current Mode Type PWM Control.
Soft Start Function.
Automatic Standby Function No Load Power Consumption < 15mW.
Operation Mode Normal Operation -----------------------------PWM Mode Light Load Operation ------------------------ Green-Mode Standby ---------------------------.
