STR3A453D, STR3A400, Off-Line PWM Controllers

Off-Line PWM Controllers with Integrated Power MOSFET STR3A400 Series Data Sheet .
The STR3A400 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

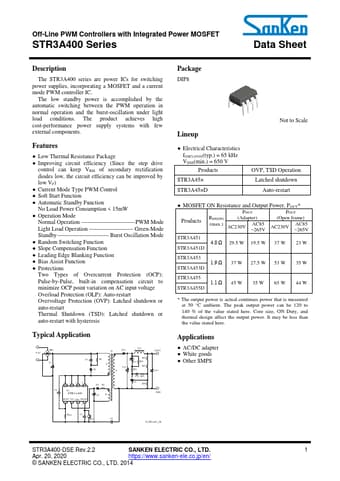

datasheet Preview Page 1 from Datasheet4u.com

STR3A400-Sanken.pdf

STR3A453D Datasheet Preview — This datasheet PDF includes multiple part numbers: STR3A453D, STR3A400. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STR3A453D, STR3A400

Manufacturer:

Sanken ↗

File Size:

865.02 KB

Description:

Off-Line PWM Controllers

Note:

This datasheet PDF includes multiple part numbers: STR3A453D, STR3A400.
Please refer to the document for exact specifications by model.

Features

* Low Thermal Resistance Package
* Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Current Mode Type PWM Control
* Soft Start Function
* Automatic Standby Function N

Applications

* AC/DC adapter
* White goods
