STRE1565, STR-E1565 DC-DC Systematic Combo Power IC

STRE1565 Description

PFC/DC-DC Systematic Combo Power IC STR-E1565 *General .
STR-E1565 is a Hybrid IC power-factor-corrected switching mode power supply (SMPS).

STRE1565 Features

* Integrated PFC Control Block 1. Critical Conduction Mode for High Efficiency and Low EMI 2.Built-in Multiplier with AC input compensation
* High Efficiency and Low EMI DC/DC Control Block 1. Multi Mode Control (1) Quasi Resonant Operation

STRE1565 Applications

* LCD-TV
* LCD-Monitor
* Projection-TV
* AC Adapter
* Electrical equipment requiring the measures against higher harmonics.
* Line-up Part Number STR-E1555 STR-E1565 Built-in MOSFET 650V / 0.7Ω 800V / 1.8Ω PFC Part (total) Output Power (Including DC/DC Output Power) DC/DC Part

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STRE1565, STR-E1565. Please refer to the document for exact specifications by model.

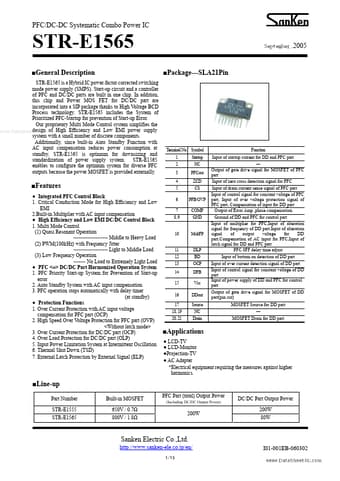

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STRE1565, STR-E1565
Manufacturer
Sanken ↗
File Size
411.42 KB
Datasheet
STR-E1565_Sanken.pdf
Description
DC-DC Systematic Combo Power IC
Note
This datasheet PDF includes multiple part numbers: STRE1565, STR-E1565.
Please refer to the document for exact specifications by model.
