SZ-10EF - Schottky Diode

Sanken

📥 Download Datasheet

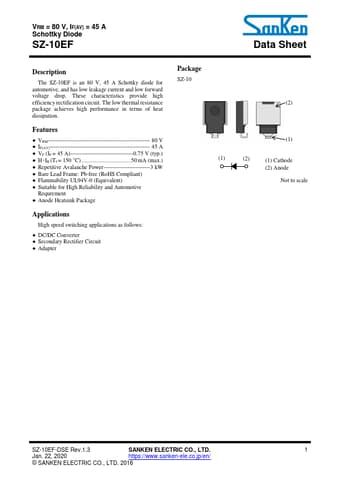

SZ-10EF Datasheet Preview — Preview of SZ-10EF PDF

Datasheet Details

Part number	SZ-10EF
Manufacturer	Sanken
File Size	413.58 KB
Description	Schottky Diode
Datasheet	SZ-10EF-Sanken.pdf

SZ-10EF Product details

Description

Package The SZ-10EF is an 80 V, 45 A Schottky diode for SZ-10 automotive, and has low leakage current and low forward voltage drop.These characteristics provide high efficiency rectification circuit.The low thermal resistance (2) package achieves high performance in terms of heat dissipation.

Features

VRM------------------------------------------------------- 80 V.
IF(AV)------------------------------------------------------ 45 A.
VF (IF = 45 A)----------------------------------0.75 V (typ. ).
HIR (TJ = 150 °C) ---------------------------------------- 50 mA (max. ).
Repetitive Avalanche Power-------------------------3 kW.
Bare Lead Frame: Pb-free (RoHS Compliant).
Flammability UL94V-0 (Equivalent).
Suitable for High Reliability and Automotive Requrement.
