SZ-10NN27VL Power Zener Diodes

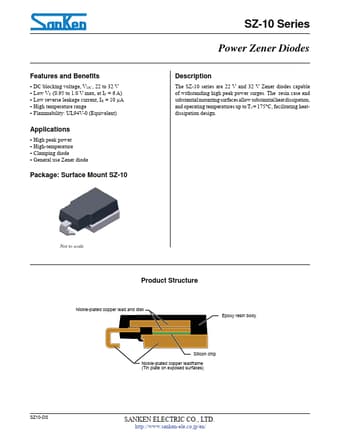

The SZ-10 series are 22 V and 32 V Zener diodes capable of withstanding high peak power surges. The resin case and substantial mounting surfaces allow substantial heat dissipation, and operating temperatures up to TJ = 175°C, facilitating heatdissipation design. Not to scale Product Structure Nic.

SZ-10NN27VL Features

* ▪ DC blocking voltage, VDC, 22 to 32 V ▪ Low VF (0.95 to 1.0 V max, at IF = 6 A) ▪ Low reverse leakage current, IR = 10 μA ▪ High temperature range ▪ Flammability: UL94V-0 (Equivalent) Applications ▪ High peak power ▪ High-temperature ▪ Clamping diode ▪ General use Zener diode Package: Surface Mount
