SZ-10NN40VL Datasheet, Diodes, Sanken

SZ-10NN40VL Features

• Diodes ▪ DC blocking voltage, VDC, 22 to 32 V ▪ Low VF (0.95 to 1.0 V max, at IF = 6 A) ▪ Low reverse leakage current, IR = 10 μA ▪ High temperature range ▪ Flammability: UL94V-0 (Equivalent)

PDF File Details

Part number:

SZ-10NN40VL

Manufacturer:

Sanken ↗

File Size:

158.80kb

Download:

📄 Datasheet

Description:

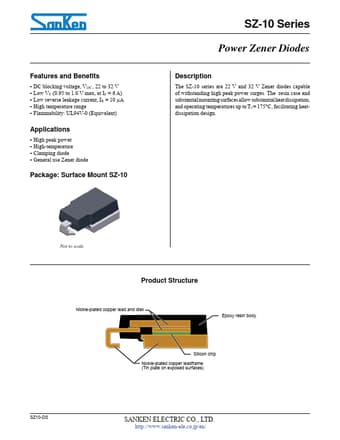

Power zener diodes. The SZ-10 series are 22 V and 32 V Zener diodes capable of withstanding high peak power surges. The resin case and substantial mounti

SZ-10NN40VL Application

• Applications ▪ High peak power ▪ High-temperature ▪ Clamping diode ▪ General use Zener diode Package: Surface Mount SZ-10 SZ-10 Series Power Zener
