103H5510-70V1 Datasheet - Sanyo Denki

103H5510-70V1 High vacuum stepping motor

In-vacuum stepping motor High vacuum stepping motor For environment in 10-5Pa (For reference). 103H -70V1 For detailed information on applicable drivers,contact our Sales Department. Specifications Model Number Number Basic step of phases angle Holding Rated Wiring Wiring torque current resistance inductance N.m or more A/phase Ω/phase mH/phase 103H5510-70V1 5 0.72˚ 0.255 0.75 2.7 2.2 103H7853-70V1 5 0.72˚ 1.86 0.75 6 15 Rotor inertia Weight x 10-4kg-m2 0.065 0.84 kg 0.4 1.4 .

103H5510-70V1-SanyoDenki.pdf

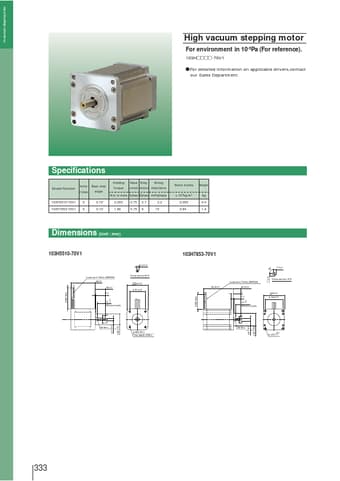

Preview of 103H5510-70V1 PDF
103H5510-70V1 Datasheet Preview Page 2

Datasheet Details

Part number:

103H5510-70V1

Manufacturer:

Sanyo Denki

File Size:

60.81 KB

Description:

High vacuum stepping motor.
