103H89222-5211, 103H89222-0941 Datasheet - Sanyo Denki

103H89222-5211 Stepping Motors

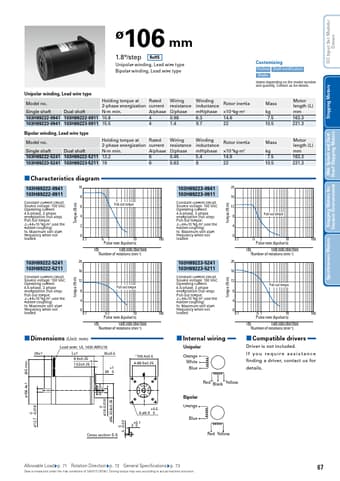

DC Input Set Models/ Drivers Stepping Motors Vacuum Environments Proof Stepping Motors IP65 Splash and Dust Stepping Motors for ø106 mm 1.8°/step RoHS Unipolar winding, Lead wire type Bipolar winding, Lead wire type Unipolar winding, Lead wire type Model no. Holding torque at Rated 2-phase energization current Single shaft Dual shaft N m min. A/phase 103H89222-0941 103H89222-0911 10.8 4 103H89223-0941 103H89223-0911 15.5 4 Wiring resistance Ω/phase 0.98 1.4 Winding inducta.

103H89222-0941-SanyoDenki.pdf

This datasheet PDF includes multiple part numbers: 103H89222-5211, 103H89222-0941. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

103H89222-5211, 103H89222-0941

Manufacturer:

Sanyo Denki

File Size:

79.95 KB

Description:

Stepping motors.

Note:

This datasheet PDF includes multiple part numbers: 103H89222-5211, 103H89222-0941.
Please refer to the document for exact specifications by model.
