103H89222-6341 Datasheet - Sanyo Denki

103H89222-6341 Stepping Motors

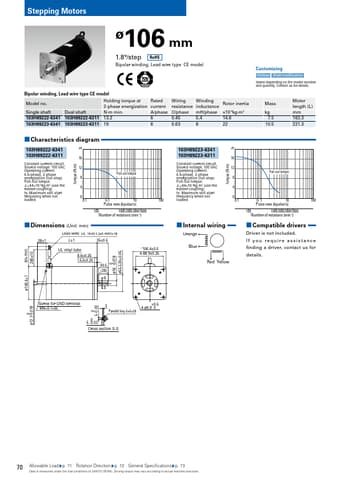

Stepping Motors ø106 mm 1.8°/step RoHS Bipolar winding, Lead wire type CE model Bipolar winding, Lead wire type CE model Model no. Holding torque at 2-phase energization Single shaft Dual shaft N m min. 103H89222-6341 103H89222-6311 13.2 103H89223-6341 103H89223-6311 19 Rated current A/phase 6 6 Wiring Winding resistance inductance Ω/phase mH/phase 0.45 5.4 0.63 8 Rotor inertia ×10-4kg m2 14.6 22 Customizing Hollow Shaft modification Varies depending on the model number and.

103H89222-6341-SanyoDenki.pdf
