SM2863-0421 Datasheet - Sanyo Denki

SM2863-0421 Stepping Motors

Stepping Motors 86 mm sq. 1.8°/step RoHS Unipolar winding, Lead wire type Unipolar winding, Lead wire type CE/UL model Bipolar winding, Lead wire type p. 64 Bipolar winding, Lead wire type CE/UL model p. 64 Bipolar winding, Terminal block type CE/UL model p. 64 Unipolar winding, Lead wire type Model no. Holding torque at 2-phase energization Single shaft Dual shaft N m min. SH2861-0441 SH2861-0411 2.5 SH2861-0941 SH2861-0911 2.5 SH2862-0441 SH2862-0411 4.7 SH2862-0941 SH2862-0911 .

SM2863-0421 Datasheet (99.28 KB)

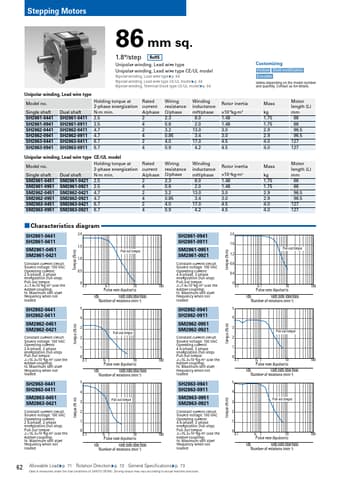

SM2863-0421 Datasheet Preview — Preview of SM2863-0421 PDF

Datasheet Details

Part number:

SM2863-0421

Manufacturer:

Sanyo Denki

File Size:

99.28 KB

Description:

Stepping motors.
