LC863340B

(LC8633xxB) 8-Bit Single Chip Microcontroller

LC863340B Features

* (1) Read-Only Memory (ROM) : 65536 40960 24576 16128 512 384 128 352 × × × × × × × × 8 8 8 9 8 8 8 8 bits bits bits bits / 57344 × 8 bits / 49152 × 8 bits / / 32768 × 8 bits / 28672 × 8 bits / / 20480 × 8 bits / 16384 × 8 bits for program for CGROM (2) Random Access Memory (RAM) : bits bits bits b

LC863340B General Description

Pin Description Terminal VSS XT1 XT2 VDD RES FILT VS HS R G B I BL Port 0 P00 - P07 Table I/O I O I O I I O O O O O I/O Port 1 P10 - P17 I/O Function Description Negative power supply Input terminal for crystal oscillator Output terminal for crystal oscillator Positive power supply Reset term.

LC863340B Datasheet (1.02 MB)

Preview of LC863340B PDF

Datasheet Details

Part number:

LC863340B

Manufacturer:

Sanyo Electric

File Size:

1.02 MB

Description:

(lc8633xxb) 8-bit single chip microcontroller.

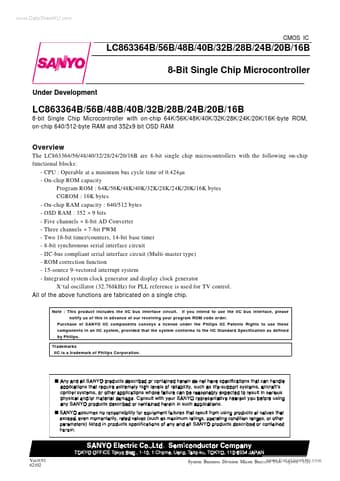

www.DataSheet4U.com CMOS IC LC863364B/56B/48B/40B/32B/28B/24B/20B/16B 8-Bit Single Chip Microcontroller Under Development LC863364B/56B/48B/40B/32B.
