LC863320B Datasheet - Sanyo Electric

LC863320B (LC8633xxB) 8-Bit Single Chip Microcontroller

Pin Description Terminal VSS XT1 XT2 VDD RES FILT VS HS R G B I BL Port 0 P00 - P07 Table I/O I O I O I I O O O O O I/O Port 1 P10 - P17 I/O Function Description Negative power supply Input terminal for crystal oscillator Output terminal for crystal oscillator Positive power supply Reset term.

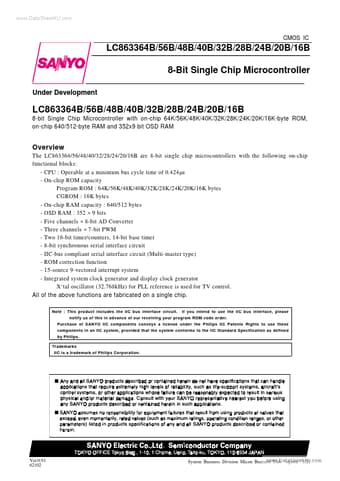

www.DataSheet4U.com CMOS IC LC863364B/56B/48B/40B/32B/28B/24B/20B/16B 8-Bit Single Chip Microcontroller Under Development LC863364B/56B/48B/40B/32B/28B/24B/20B/16B 8-bit Single Chip Microcontroller with on-chip 64K/56K/48K/40K/32K/28K/24K/20K/16K-byte ROM, on-chip 640/512-byte RAM and 352x9 bit OSD RAM Overview The LC863364/56/48/40/32/28/24/20/16B are 8-bit single chip microcontrollers with the following on-chip functional blocks: - CPU : Operable at a minimum bus cycle time of 0.424 µs - O.

LC863320B Features

* (1) Read-Only Memory (ROM) : 65536 40960 24576 16128 512 384 128 352 × × × × × × × × 8 8 8 9 8 8 8 8 bits bits bits bits / 57344 × 8 bits / 49152 × 8 bits / / 32768 × 8 bits / 28672 × 8 bits / / 20480 × 8 bits / 16384 × 8 bits for program for CGROM (2) Random Access Memory (RAM) : bits bits bits b
