LC863320C 8-bit 1-chip Microcontroller

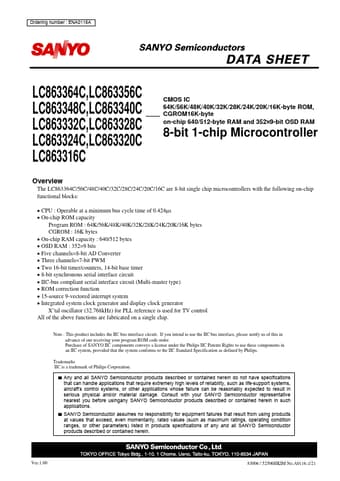

www.DataSheet.co.kr Ordering number : ENA0116A LC863364C,LC863356C LC863348C,LC863340C LC863332C,LC863328C LC863324C,LC863320C LC863316C Overview CMOS IC 64K/56K/48K/40K/32K/28K/24K/20K/16K-byte ROM, CGROM16K-byte on-chip 640/512-byte RAM and 352×9-bit OSD RAM 8-bit 1-chip Microcontroller The LC863364C/56C/48C/40C/32C/28C/24C/20C/16C are 8-bit single chip microcontrollers with the following on-chip functional blocks: CPU : Operable at a minimum bus cycle time of 0.424µs .

LC863320C Features

* Read-Only Memory (ROM) : 65536×8 bits / 57344×8 bits / 49152×8 bits / 40960×8 bits / 32768×8 bits / 28672×8 bits / 24576×8 bits / 20480×8 bits / 16384×8 bits for program 16128×8 bits for CGROM 512×8 bits (working area) : LC863364C/56C/48C/40C 384×8 bits (working area) : LC863332C/28C/24C/20
