LC863324 - 8-Bit Single Chip Microcontroller

Datasheet Summary

Description

Pin Description Table Terminal I/O VSS XT1 I XT2 O VDD I RES FILT O I VS I HS R O G O B O I O BL O Port 0 P00 - P07 Function Description Negative power supply Input terminal for crystal oscillator Output terminal for crystal oscillator Positive power supply Reset terminal Filter terminal for PLL Ver

Features

  • (1) Read-Only Memory (ROM) : 32768 × 8 bits / 28672 × 8 bits / 24576 × 8 bits 20480 × 8 bits / 16384 × 8 bits for program 16128 × 8 bits for CGROM 512 × 8 bits (including 128 bytes for ROM correction function) 352 × 9 bits (for CRT display) (2) Random Access Memory (RAM) : (3) OSD functions - Screen display : 36 characters × 16 lines (by software) - RAM : 352 words (9 bits per word) Display area : 36 words × 8 lines Control area : 8 words × 8 lines - Characters Up to 252 kinds of 16 × 32 dot c.

📥 Download Datasheet

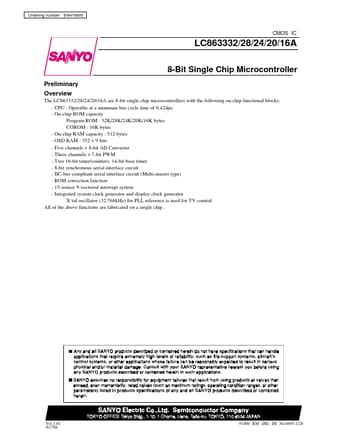

Datasheet preview – LC863324

Datasheet Details

Part number LC863324
Manufacturer Sanyo Semicon Device
File Size 651.71 KB
Description 8-Bit Single Chip Microcontroller
Datasheet download datasheet LC863324 Datasheet
Additional preview pages of the LC863324 datasheet.

📁 Similar Datasheet

  • LC863324B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863320B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863328B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863316B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863332B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863340B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863348B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863356B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863364B - (LC8633xxB) 8-Bit Single Chip Microcontroller (Sanyo Electric)
  • LC863096 - 8 Bit Single Chip Microcontroller (Sanyo)
Other Datasheets by Sanyo Semicon Device
  • LC863324A - 8-Bit Single Chip Microcontroller
  • LC863324C - 8-bit 1-chip Microcontroller
  • LC863320 - 8-Bit Single Chip Microcontroller
  • LC863320A - 8-Bit Single Chip Microcontroller
  • LC863320C - 8-bit 1-chip Microcontroller
  • LC863328 - 8-Bit Single Chip Microcontroller
  • LC863328A - 8-Bit Single Chip Microcontroller
  • LC863328C - 8-bit 1-chip Microcontroller

Full PDF Text Transcription

Click to expand full text
Ordering number : ENN*6695 CMOS IC LC863332/28/24/20/16A 8-Bit Single Chip Microcontroller Preliminary Overview The LC863332/28/24/20/16A are 8-bit single chip microcontrollers with the following on-chip functional blocks: - CPU : Operable at a minimum bus cycle time of 0.424µs - On-chip ROM capacity Program ROM : 32K/28K/24K/20K/16K bytes CGROM : 16K bytes - On-chip RAM capacity : 512 bytes - OSD RAM : 352 × 9 bits - Five channels × 8-bit AD Converter - Three channels × 7-bit PWM - Two 16-bit timer/counters, 14-bit base timer - 8-bit synchronous serial interface circuit - IIC-bus compliant serial interface circuit (Multi-master type) - ROM correction function - 15-source 9-vectored interrupt system - Integrated system clock generator and display clock generator X’tal oscillator (32.
