2SA1338 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA1338 Description

Ordering number:EN1421A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1338/2SC3392 High-Speed Switching Applications .

2SA1338 Features

* Adoption of FBET process.
* High breakdown voltage : VCEO=(
* )50V.
* Large current capacitiy and high fT.

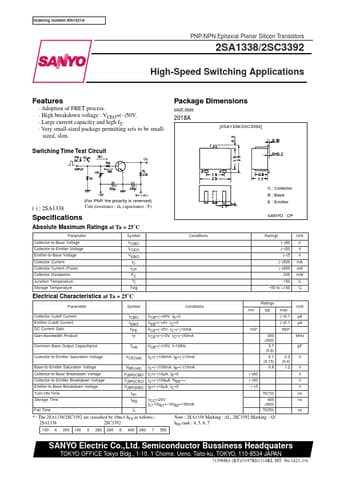

* Very small-sized package permitting sets to be small- sized, slim. Package Dimensions unit:mm 2018A [2SA1338/2SC3392] Switching Time Test Circuit ( ) : 2SA1338 (Fo
