2SA1332 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SA1332

Manufacturer:

SavantIC

File Size:

137.79kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220Fa package
  • High VCEO APPLICATIONS
  • Power amplifier applications
  • Driver stage amplifier

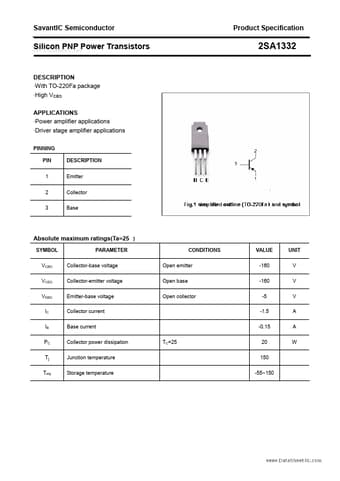

  • Datasheet Preview: 2SA1332 📥 Download PDF (137.79kb)
    Page 2 of 2SA1332 Page 3 of 2SA1332

    2SA1332 Application

    • Applications
    • Power amplifier applications
    • Driver stage amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base
