2SA1538 Datasheet, Transistors, Sanyo Semicon Device

2SA1538 Features

• Transistors
• High fT : fT=400MHz.
• High breakdown voltage : VCEO=120Vmin.
• Small reverse transfer capacitance and excellent HF response : Cre=1.7pF/NPN, 2.2pF/PNP.
<

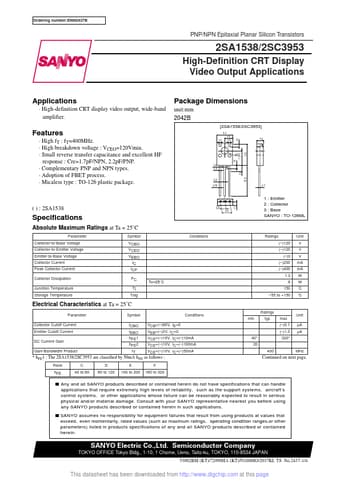

PDF File Details

Part number:

2SA1538

Manufacturer:

Sanyo Semicon Device

File Size:

96.81kb

Download:

📄 Datasheet

Description:

Pnp/npn epitaxial planar silicon transistors.

2SA1538 Application

• Applications Applications
• High-definition CRT display video output, wide-band amplifier. Package Dimensions unit:mm 2042B [2SA1538/2SC395
