2SA1580 - PNP/NPN Epitaxial Planar Silicon Transistors

2SA1580 Description

Ordering number:EN3172 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1580/2SC4104 High-Definition CRT Display Applications .

2SA1580 Features

* High fT.
* Small reverse transfer capacitance.
* Adoption of FBET process. Package Dimensions unit:mm 2018A [2SA1580/2SC4104] ( ) : 2SA1580 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage

📥 Download Datasheet

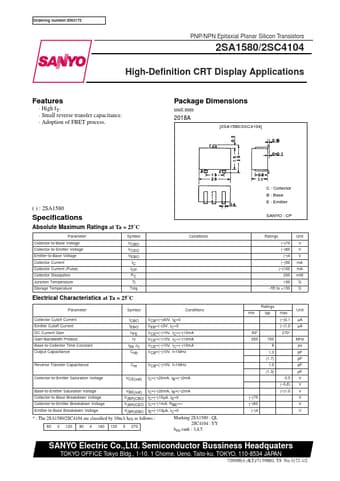

Preview of 2SA1580 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1580
Manufacturer
Sanyo Semicon Device
File Size
17.39 KB
Datasheet
2SA1580_SanyoSemiconDevice.pdf
Description
PNP/NPN Epitaxial Planar Silicon Transistors
