2SA1585 - Silicon PNP transistor

2SA1585 Description

2SA1585 Rev.E Mar.-2016 DATA SHEET / .
TO-92 PNP 。Silicon PNP transistor in a TO-92 Plastic Package.

2SA1585 Applications

* 。 Low Frequency Amplifier. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 120~270 R 180~390 http://www. fsbrec. com 1/6 2SA1585 Rev. E Mar. -2016 / Absolute Maximum Ratings(Ta=25℃) Par

📥 Download Datasheet

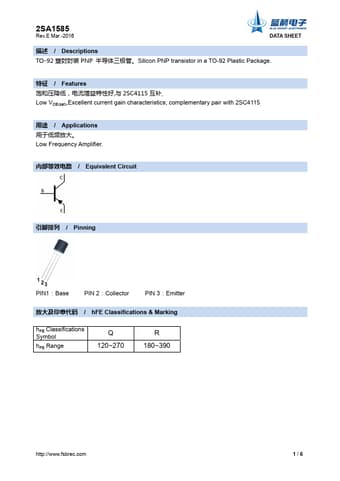

Preview of 2SA1585 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1585
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
967.03 KB
Datasheet
2SA1585-BLUEROCKETELECTRONICS.pdf
Description
Silicon PNP transistor
