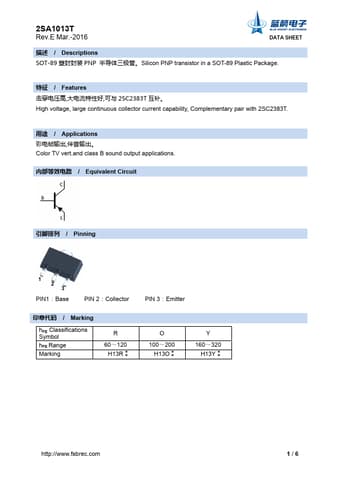

2SA1013T
Rev.E Mar.-2016
DATA SHEET
/ Descriptions SOT-89 PNP 。Silicon PNP transistor in a SOT-89 Plastic Package.
/ Features
,, 2SC2383T 。 High voltage, large continuous collector current capability, Complementary pair with 2SC2383T.
/ Applications
,。 Color TV vert.and class B sound output applications. / Equivalent Circuit
/ Pinning
1 2 3
PIN1：Base
PIN 2：Collector
/ Marking
hFE Classifications Symbol hFE Range Marking
R
60～120 H13R
PIN 3：Emitter
O
100～200 H13O
Y
160～320 H13Y
** ** **
http://www.fsbrec.com
1/6
