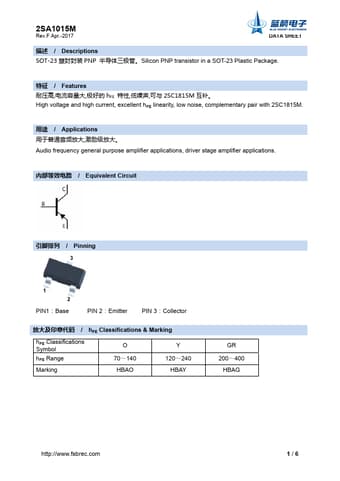

2SA1015M
Rev.E Mar.-2016
DATA SHEET
/ Descriptions SOT-23 PNP 。Silicon PNP transistor in a SOT-23 Plastic Package.
/ Features ,, hFE ,, 2SC1815M 。 High voltage and high current, excellent hFE linearity, low noise, complementary pair with 2SC1815M.
/ Applications ,。 Audio frequency general purpose amplifier applications, driver stage amplifier applications.
/ Equivalent Circuit
/ Pinning
3
2 1
PIN1：Emitter
PIN 2：Base PIN 3：Collector
/ hFE Classifications & Marking
hFE Classifications Symbol hFE Range
O 70～140
Y 120～240
Marking
HBAO
HBAY
GR 200～400
HBAG
http://www.fsbrec.com
1/6
