2SA1015-GR - PNP Transistor

Product Overview

MCC

📥 Download Datasheet

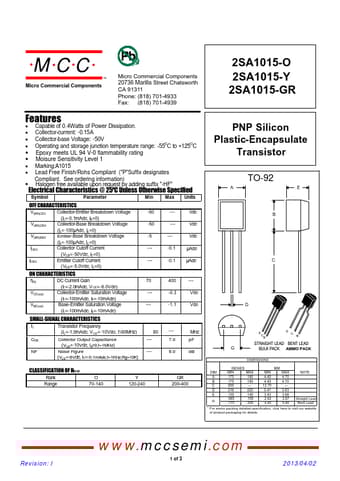

2SA1015-GR PNP Transistor by MCC - Datasheet Preview — Datasheet preview – 2SA1015-GR

Datasheet Details

Part number	2SA1015-GR
Manufacturer	MCC
File Size	627.82 KB
Description	PNP Transistor
Datasheet	2SA1015-GR Datasheet
Additional preview pages of the 2SA1015-GR datasheet.

Product details

Features

Capable of 0.4Watts of Power Dissipation.
Collector-current: -0.15A.
Collector-base Voltage: -50V.
Operating and storage junction temperature range: -55OC to +125OC.
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1.
Marking:A1015.
Lead Free Finish/Rohs Compliant ("P"Suffix designates Compliant. See ordering information).
Halogen free available upon request by adding suffix "-HF" Electrical C.
