2SA1683 - PNP Epitaxial Planar Silicon Transistors

Name: 2SA1683
SKU: 2SA1683-73577

Sanyo Semicon Device

The 2SA1683 by Sanyo Semicon Device is a PNP Epitaxial Planar Silicon Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	2SA1683
Manufacturer	Sanyo Semicon Device
File Size	40.01 KB
Description	PNP Epitaxial Planar Silicon Transistors
Datasheet	2SA1683_SanyoSemiconDevice.pdf

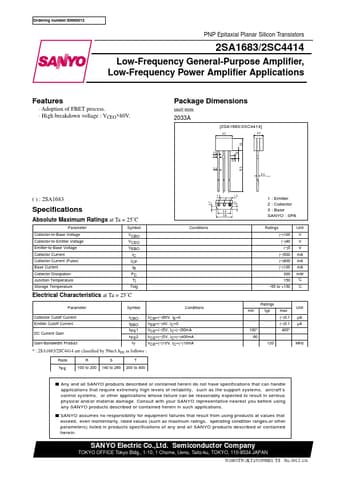

Additional preview pages of the 2SA1683 datasheet.

Adoption of FBET process.
High breakdown voltage : VCEO>80V. Package Dimensions unit:mm 2033A [2SA1683/2SC4414] 4.0 2.2 1.8 3.0 0.6 0.4 0.5 0.4 0.4 15.0 ( ) : 2SA1683 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Elect.
