2SC4204 NPN Epitaxial Planar Silicon Transistor

2SC4204 Description

Ordering number:EN2531A NPN Epitaxial Planar Silicon Transistor 2SC4204 High-hFE, AF Amplifier Applications Applications * AF amplifier, various.

2SC4204 Features

* Adoption of MBIT process.
* High DC current gain (hFE=800 to 3200).
* Large current capacity (IC=0.7A).
* Low collector-to-emitter saturation voltage (VCE(sat)≤0.5V).
* High VEBO (VEBO≥15V). 0.45 0.5 0.6 2.0 0.45 0.44 14.0 5.0 1 2 3 Specifications Absolute Maximum Ratings

2SC4204 Applications

* Applications

📥 Download Datasheet

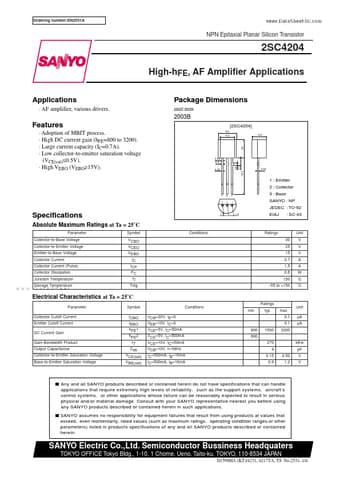

Preview of 2SC4204 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC4204
Manufacturer
Sanyo Semicon Device
File Size
136.10 KB
Datasheet
2SC4204_SanyoSemiconDevice.pdf
Description
NPN Epitaxial Planar Silicon Transistor
