2SC4208 - NPN Transistor

Datasheet Summary

Features

  • 0.7±0.1 0.7±0.2 13.5±0.5.
  • Low collector-emitter saturation voltage VCE(sat).
  • Output of 1 W is obtained with a complementary pair with 2SA1619 and 2SA1619A.
  • Allowing supply with the radial taping /.
  • Absolute Maximum Ratings Ta = 25°C 0.45+.
  • 00..12 0.45+.
  • 00..115 e Parameter Symbol Rating Unit c type) Collector-base voltage 2SC4208 VCBO 30 2.3±0.2 V n d ge. ed (Emitter open) 2SC4208A 60 sta tinu Collector-emitter voltage 2SC4208 VCEO.

📥 Download Datasheet

Datasheet preview – 2SC4208

Datasheet Details

Part number 2SC4208
Manufacturer Panasonic Semiconductor
File Size 252.35 KB
Description NPN Transistor
Datasheet download datasheet 2SC4208 Datasheet
Additional preview pages of the 2SC4208 datasheet.

📁 Similar Datasheet

  • 2SC4200 - NPN EPITAXIAL TYPE TRANSISTOR (Toshiba Semiconductor)
  • 2SC4203 - Silicon Epitaxial Planar Type Transistor (Toshiba Semiconductor)
  • 2SC4204 - NPN Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC4205 - NPN Transistor (INCHANGE)
  • 2SC4205 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4206 - TRIPLE DIFFUSED PLANER TYPE TRANSISTOR (New Jersey Semi-Conductor)
  • 2SC4207 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC4209 - Silicon NPN Epitaxial Type TRANSISTOR (Toshiba Semiconductor)
  • 2SC4209 - Silicon NPN Epitaxial Type Transistor (Kexin)
  • 2SC4210 - Silicon NPN Epitaxial Type TRANSISTOR (Toshiba Semiconductor)
Other Datasheets by Panasonic Semiconductor
  • 2SC4208A - NPN Transistor
  • 2SC4212 - Silicon NPN triple diffusion planar type Transistor
  • 2SC4004 - Silicon NPN Transistor
  • 2SC4026 - Silicon NPN Transistor
  • 2SC4152 - Silicon NPN Power Transistors
  • 2SC4358 - Silicon NPN Transistor
  • 2SC4391 - Silicon NPN Transistor
  • 2SC4410 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

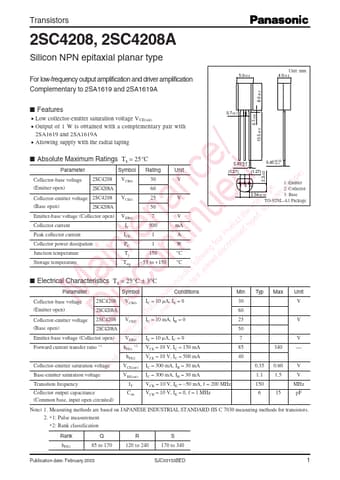

Transistors 2SC4208, 2SC4208A Silicon NPN epitaxial planar type For low-frequency output amplification and driver amplification Complementary to 2SA1619 and 2SA1619A 5.0±0.2 Unit: mm 4.0±0.2 8.0±0.2 ■ Features 0.7±0.1 0.7±0.2 13.5±0.5 • Low collector-emitter saturation voltage VCE(sat) • Output of 1 W is obtained with a complementary pair with 2SA1619 and 2SA1619A • Allowing supply with the radial taping / ■ Absolute Maximum Ratings Ta = 25°C 0.45+–00..12 0.45+–00..115 e Parameter Symbol Rating Unit c type) Collector-base voltage 2SC4208 VCBO 30 2.3±0.2 V n d ge.
