2SC4210 Datasheet - Toshiba Semiconductor

2SC4210 Silicon NPN Epitaxial Type TRANSISTOR

2SC4210 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC4210 Audio Power Amplifier Applications High DC current gain: hFE = 100~320 Complementary to 2SA1621 Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range VCBO VCEO VEBO IC IB PC Tj Tstg 35 30 5 .

2SC4210_ToshibaSemiconductor.pdf

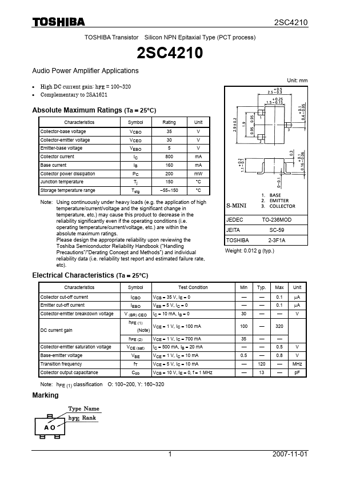

Preview of 2SC4210 PDF
2SC4210 Datasheet Preview Page 2 2SC4210 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC4210

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

176.55 KB

Description:

Silicon npn epitaxial type transistor.
