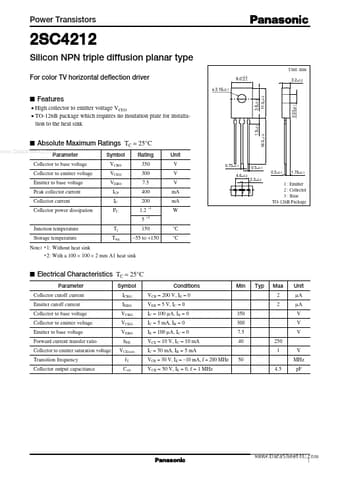

* I Absolute Maximum Ratings TC = 25°C www.DataSheet4U.com Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Rating 350 300 7.5 400 200 1.2
* 1 5 Junc
2SC4212
Panasonic Semiconductor
92.62 KB
Silicon npn triple diffusion planar type transistor.
Power Transistors
2SC4212
Silicon NPN triple diffusion planar type
Unit: mm
For color TV horizontal deflection driver
φ 3.16±0.1
8.0+0.5
*0.
