2SC4215

NPN Silicon Transistor

2SC4215 Features

* Small reverse transfer capacitance.

* Low noise figure. Pb Lead-free APPLICATIONS

* FM,RF,MIX,IF Amplifier Applications. Production specification 2SC4215 ORDERING INFORMATION Type No. Marking 2SC4215 QR/QO/QY SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwi

2SC4215 Datasheet (152.53 KB)

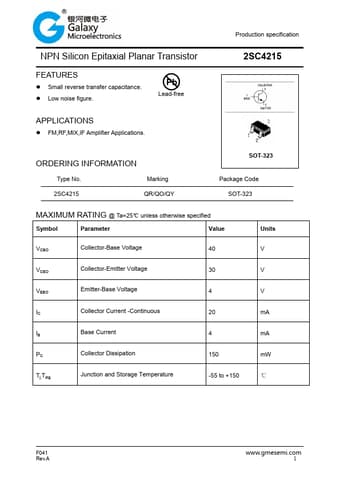

Preview of 2SC4215 PDF

Datasheet Details

Part number:

2SC4215

Manufacturer:

GME

File Size:

152.53 KB

Description:

Npn silicon transistor.
