2SC4003

NPN Epitaxial Planar Silicon Transistor

2SC4003 Features

* High hFE hFE=60 to 200.

* Low VCE(sat)=0.6V. Pb Lead-free Production specification 2SC4003 TO-251 TO-252 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Units VCBO VCEO Collector-Base Volage Collector-Emitter Voltage 400 V 40

2SC4003 Datasheet (187.32 KB)

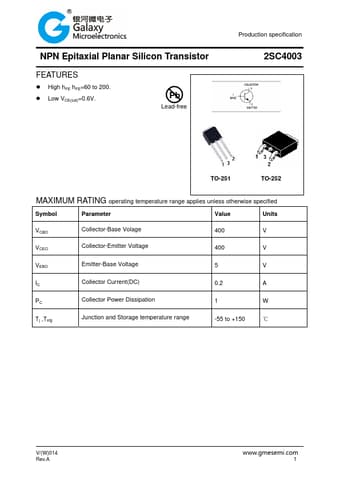

Preview of 2SC4003 PDF

Datasheet Details

Part number:

2SC4003

Manufacturer:

GME

File Size:

187.32 KB

Description:

Npn epitaxial planar silicon transistor.
