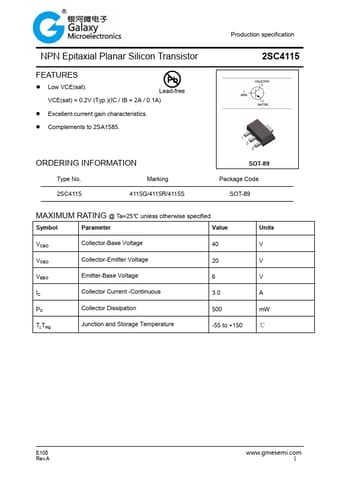

Part number:
2SC4115
Manufacturer:
GME
File Size:
290.37 KB
Description:
Npn epitaxial planar silicon transistor.
* Low VCE(sat). Pb Lead-free VCE(sat) = 0.2V (Typ.)(IC / IB = 2A / 0.1A)
* Excellent current gain characteristics.
* Complements to 2SA1585. Production specification 2SC4115 ORDERING INFORMATION Type No. Marking 2SC4115 4115G/4115R/4115S SOT-89 Package Code SOT-89 MAXIMUM RAT
2SC4115
GME
290.37 KB
Npn epitaxial planar silicon transistor.
