2SC4110

NPN Triple Diffused Planar Silicon Transistor

2SC4110 Features

* High breakdown voltage and high reliability.

* Fast switching speed.

* Wide ASO.

* Adoption of MBIT process. Package Dimensions unit:mm 2022A [2SC4110] 15.6 3.2 14.0 4.8 2.0 1.3 1.2 3.5 15.0 20.0 2.6 1.6 2.0 1.0 20.0 1.4 0.6 Specifications 123 0.6 5.45 5.45 1.4 1 : Base

2SC4110 Datasheet (105.99 KB)

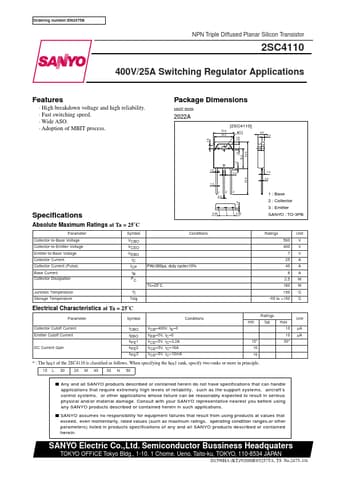

Preview of 2SC4110 PDF

Datasheet Details

Part number:

2SC4110

Manufacturer:

Sanyo Semicon Device

File Size:

105.99 KB

Description:

Npn triple diffused planar silicon transistor.
