2SC4110B - Silicon NPN Transistor

Product Overview

NELL SEMICONDUCTOR

📥 Download Datasheet

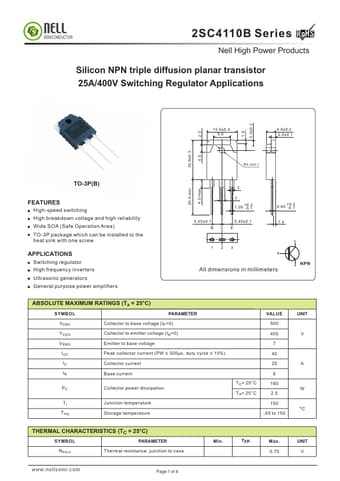

2SC4110B Silicon NPN Transistor by NELL SEMICONDUCTOR - Datasheet Preview — Datasheet preview – 2SC4110B

Datasheet Details

Part number	2SC4110B
Manufacturer	NELL SEMICONDUCTOR
File Size	264.93 KB
Description	Silicon NPN Transistor
Datasheet	2SC4110B Datasheet
Additional preview pages of the 2SC4110B datasheet.

Product details

Features

High-speed switching High breakdown voltage and high reliability Wide SOA (Safe Operation Area) TO-3P package which can be installed to the heat sink with one screw 4.0 max 2 3 +0.2 1.05 -0.1 5.45±0.1 C E +0.2 0.65 -0.1 5.45±0.1 B 1.8 15.6±0.4 9.6 5 . 0 ±0 . 2 4.8±0.2 2.0±0.1 Φ 3.2 ± 0,1 1.4 C.
