2SC2625B, Silicon NPN Transistor

SEMICONDUCTOR RoHS 2SC2625B RoHS Nell High Power Products Silicon NPN triple diffusion planar transistor (High voltage switching transistor) 10A/400.

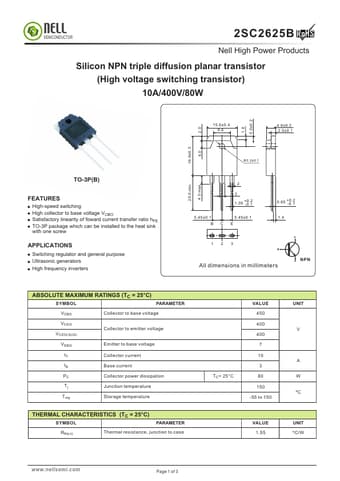

datasheet Preview Page 1 from Datasheet4u.com

2SC2625B-NELLSEMICONDUCTOR.pdf

2SC2625B Datasheet Preview — Preview of 2SC2625B PDF

Datasheet Details

Part number:

2SC2625B

Manufacturer:

NELL SEMICONDUCTOR

File Size:

263.40 KB

Description:

Silicon NPN Transistor

Features

* High-speed switching High collector to base voltage VCBO Satisfactory linearity of foward current transfer ratio hFE TO-3P package which can be installed to the heat sink with one screw 4.0 max 2 3 +0.2 1.05 -0.1 5.45±0.1 C E +0.2 0.65 -0.1 5.45±0.1 B 1.8 15.6±0.4 9.6 4.8±0.2 2.0±0.1 Φ 3.2 ±

Applications

* Switching regulator and general purpose Ultrasonic generators High frequency inverters 1 2 3 B E NPN All dimensions in millimeters ABSOLUTE MAXIMUM RATINGS (TC = 25°C) SYMBOL VCBO V CEO Collector to emitter voltage V CEO(SUS) V EBO IC IB PC Tj T stg Emitter to base voltage Collector current B
