2SC2624 - Power Transistor

Product Overview

📥 Download Datasheet

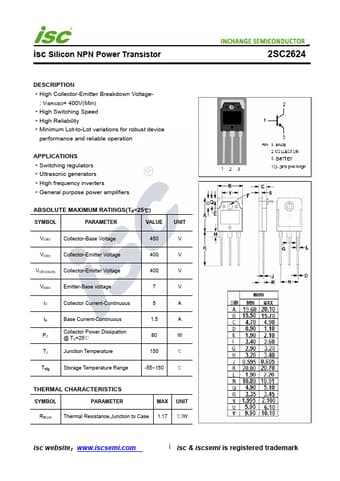

Datasheet preview – 2SC2624

Datasheet Details

Part number 2SC2624
Manufacturer Inchange Semiconductor
File Size 213.33 KB
Description Power Transistor
Datasheet download datasheet 2SC2624 Datasheet
Additional preview pages of the 2SC2624 datasheet.

Product details

Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min) High Switching Speed High Reliability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulators Ultrasonic generators High frequency inverters General purpose power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 450 V VCEO Collector-Emitter Voltage 400 V VCEO(SUS) Coll
