2SC2653H - Silicon NPN Power Transistor

2SC2653H Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor Product Specification 2SC2653H .
High VCEO. Large Pc APPLICATIONS. Color TV Horizontal. Deflection Driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE.

2SC2653H Applications

* Color TV Horizontal
* Deflection Driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 480 V VCEO Collector-Emitter Voltage 300 V VEBO Emitter-Base Voltage 7.5 V IC Collector Current-Continuous Total Power Dissipation Pc @ TC=25℃ TJ Junct

📥 Download Datasheet

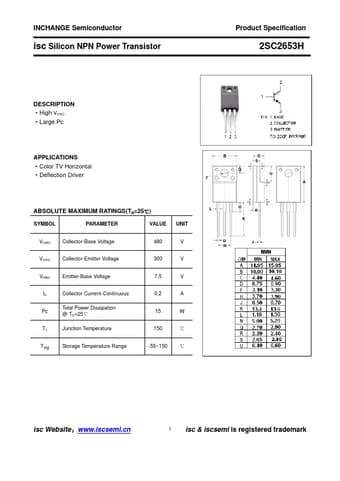

Preview of 2SC2653H PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2653H
Manufacturer
Inchange Semiconductor
File Size
69.31 KB
Datasheet
2SC2653H-InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistor
