* Low saturation voltage：VCE(sat)=0.5V(Max)(IC=1A) High speed switching time：tstg=1µs(Typ.) CLASSIFICATION OF hFE (1) Product-Rank 2SC2655L-O Range 70-140 2SC2655L-Y 120-240 TO-92L GH 1 Emitter 2 Collector 3 Base J AD B K E CF Collector 2 3 Base 1 ABSOLUTE MAXIMUM RATINGS (TA =25°C unless oth

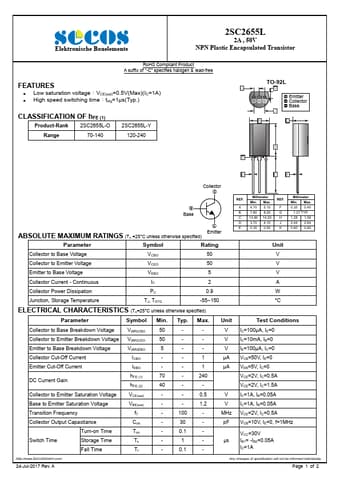

2SC2655L Datasheet (616.69 KB)
2SC2655L
SeCoS
616.69 KB
Npn transistor.
Elektronische Bauelemente 2SC2655L 2A , 50V P Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free .
