2SC2229

NPN Transistor

2SC2229 Features

* High Breakdown Voltage High Transition Frequency TO-92MOD AD B K EF C Collector 2 3 Base 1 Emitter N GH 1 Emitter 2 Collector M 3 Base LJ REF. A B C D E F G Millimeter Min. Max. 5.50 6.50 8.00 9.00 12.70 14.50 4.50 5.30 0.35 0.65 0.30 0.51 1.50 TYP. REF. H J K L M N Millimeter Min. Max. 1.

2SC2229 Datasheet (327.65 KB)

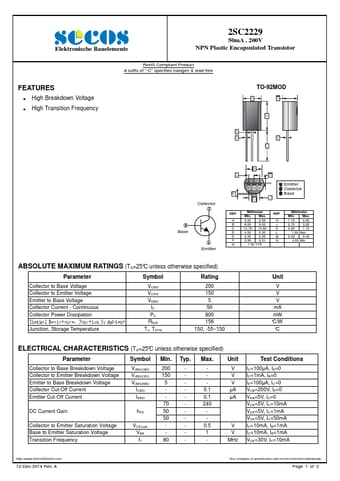

Preview of 2SC2229 PDF

Datasheet Details

Part number:

2SC2229

Manufacturer:

SeCoS

File Size:

327.65 KB

Description:

Npn transistor.
Elektronische Bauelemente 2SC2229 50mA , 200V NPN Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-f.
