2SC2204 - SILICON NPN TRANSISTOR

Datasheet Summary

Features

  • :.
  • High Voltage : VCEO=400V(Min. ) (2SC2204) V CEO =300V(Min. )(2SC2220) VcBO=800V(Min. )(2SC2204) VcBO=500V(Min. )(2SC2220).
  • High Speed Switching : tf=0. 7ys (Typ. 034.0 031.0 r . _. i I .03.0 1 Unit in mm 02.3±O. 2 J 4.5±0.5.

📥 Download Datasheet

Datasheet preview – 2SC2204

Datasheet Details

Part number 2SC2204
Manufacturer Toshiba
File Size 41.09 KB
Description SILICON NPN TRANSISTOR
Datasheet download datasheet 2SC2204 Datasheet
Additional preview pages of the 2SC2204 datasheet.

📁 Similar Datasheet

  • 2SC2206 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC2209 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC2209 - NPN Transistor (INCHANGE)
  • 2SC2209 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2210 - NPN Transistor (Sanyo Semicon Device)
  • 2SC2210 - NPN Epitaxial Planar Silicon Transistor (Sanyo Semiconductor)
  • 2SC2216 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC2216 - NPN Transistor (LGE)
  • 2SC2216 - NPN Transistor (Cnelectr)
  • 2SC2216 - NPN Transistor (WEJ)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

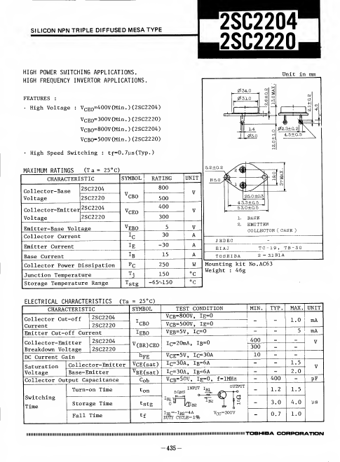

) SILICON NPN TRIPLE DIFFUSED MESA TYPE 2SC2204 2SC2220 HIGH POWER SWITCHING APPLICATIONS. HIGH FREQUENCY INVERTOR APPLICATIONS. FEATURES : • High Voltage : VCEO=400V(Min. ) (2SC2204) V CEO =300V(Min.)(2SC2220) VcBO=800V(Min.)(2SC2204) VcBO=500V(Min.)(2SC2220) • High Speed Switching : tf=0. 7ys (Typ. 034.0 031.0 r ._. i I .03.0 1 Unit in mm 02.3±O. 2 J 4.5±0.5 MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC SYMBOL Collector-Base Voltage 2SC2204 2SC2220 'CBO Collector-Emitter 2SC2204 Voltage 2SC2220 'CEO RATING 800 500 400 300 Emitter-Base Voltage Collector Current Emitter Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range 'EBO L stg 30 -30 15 250 150 -65vL50 UNIT 1. BASE 2.
