2SC2222H - NPN General Purpose Switching Transistor

Product Overview

Pan Jit International

📥 Download Datasheet

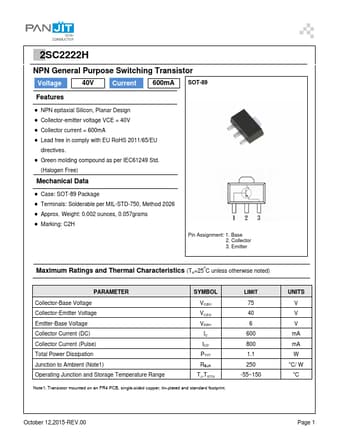

2SC2222H NPN General Purpose Switching Transistor by Pan Jit International - Datasheet Preview — Datasheet preview – 2SC2222H

Datasheet Details

Part number	2SC2222H
Manufacturer	Pan Jit International
File Size	351.34 KB
Description	NPN General Purpose Switching Transistor
Datasheet	2SC2222H Datasheet
Additional preview pages of the 2SC2222H datasheet.

Product details

Features

NPN epitaxial Silicon, Planar Design.
Collector-emitter voltage VCE = 40V.
Collector current = 600mA.
Lead free in comply with EU RoHS 2011/65/EU directives.
Green molding compound as per IEC61249 Std. (Halogen Free) Mechanical Data.
Case: SOT-89 Package.
Terminals: Solderable per MIL-STD-750, Method 2026.
Approx. Weight: 0.002 ounces, 0.057grams.
Marking: C2H Pin Assignment: 1. Base 2. Collector 3. Emitter Maximum Ratings and Thermal Charact.
