2SC2230A - Silicon NPN Triple Diffused Type Transistor

This page provides the datasheet information for the 2SC2230A, a member of the 2SC2230 Silicon NPN Triple Diffused Type Transistor family.

📥 Download Datasheet

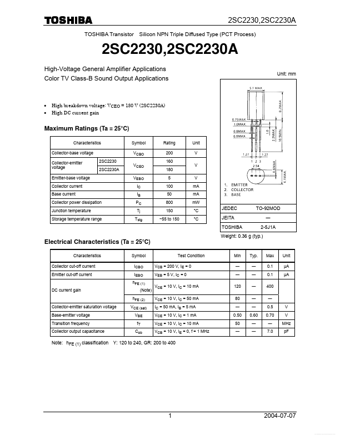

Datasheet preview – 2SC2230A

Datasheet Details

Part number 2SC2230A
Manufacturer Toshiba
File Size 153.21 KB
Description Silicon NPN Triple Diffused Type Transistor
Datasheet download datasheet 2SC2230A Datasheet
Additional preview pages of the 2SC2230A datasheet.

📁 Similar Datasheet

  • 2SC2230A - (2SC2230/A) SILICON NPN TRANSISTOR (FOSHAN BLUE ROCKET)
  • 2SC2230A - (2SC2230/A) NPN Transistor (JIANGSU CHANGJIANG)
  • 2SC2230A - SILICON NPN TRANSISTOR (LZG)
  • 2SC2230 - TRANSISTOR (Toshiba Semiconductor)
  • 2SC2230 - (2SC2230/A) SILICON NPN TRANSISTOR (FOSHAN BLUE ROCKET)
  • 2SC2230 - (2SC2230/A) NPN Transistor (JIANGSU CHANGJIANG)
  • 2SC2230 - NPN Transistor (WEJ)
  • 2SC2230 - NPN Transistor (Changjiang)
  • 2SC2230 - SILICON NPN TRANSISTOR (LZG)
  • 2SC2233 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text
2SC2230,2SC2230A TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT Process) 2SC2230,2SC2230A High-Voltage General Amplifier Applications Color TV Class-B Sound Output Applications Unit: mm • • High breakdown voltage: VCEO = 180 V (2SC2230A) High DC current gain Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range 2SC2230 2SC2230A Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 200 160 180 5 100 50 800 150 −55 to 150 Unit V V V mA mA mW °C °C JEDEC JEITA TOSHIBA TO-92MOD ― 2-5J1A Weight: 0.36 g (typ.
