2SC2236-Y - NPN Transistor

Datasheet Summary

Features

  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • Storage Temperature Range: -55℃ to +150℃.
  • Thermal Resistance: 139℃/W Junction to Ambient Parameter.

📥 Download Datasheet

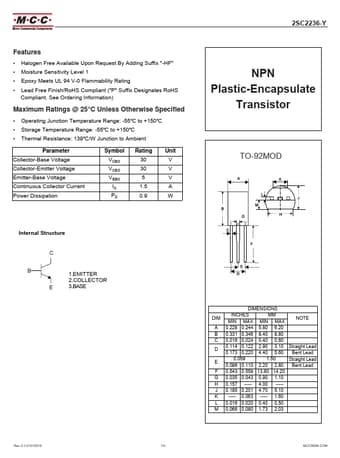

Datasheet preview – 2SC2236-Y

Datasheet Details

Part number 2SC2236-Y
Manufacturer MCC
File Size 364.67 KB
Description NPN Transistor
