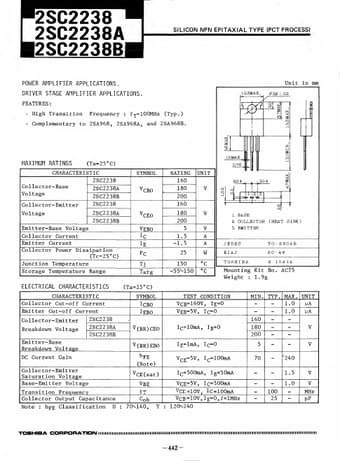

2SC2238B Datasheet, transistor equivalent, Toshiba

2SC2238B Features

• Transistor
• High Transition Frequency : f^=100MHz (Typ.)
• Complementary to 2SA968, 2SA968A, and 2SA968B. 10.3MAX. Unit in mm 036 1.0.2 MAXIMUM RATINGS (Ta=25°C) CHARACTERIST

PDF File Details

Part number:

2SC2238B

Manufacturer:

Toshiba ↗

File Size:

90.17kb

Download:

📄 Datasheet

Description:

Silicon npn transistor.

2SC2238B Application

• Applications DRIVER STAGE AMPLIFIER APPLICATIONS. FEATURES
• High Transition Frequency : f^=100MHz (Typ.)
• Complementary to 2SA968
