2SC2239 - NPN Transistor

2SC2239 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage : V(BR)CEO=160V(Min). Good Linearity of hFE. Minimum Lot-to-Lot variations for robust device performa.

2SC2239 Applications

* Power amplifier applications
* Driver stage amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 160 V VCEO Collector-Emitter Voltage 160 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 1.5 A IE E

📥 Download Datasheet

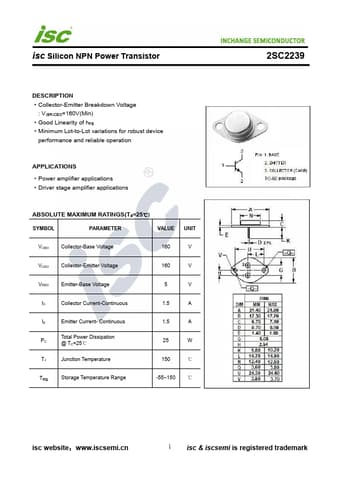

Preview of 2SC2239 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2239
Manufacturer
INCHANGE
File Size
209.97 KB
Datasheet
2SC2239-INCHANGE.pdf
Description
NPN Transistor
