2SC2229 - NPN Transistor

2SC2229 Description

isc Silicon NPN Pow Transistor INCHANGE Semiconductor 2SC2229 .
High breakdown voltage. Low output capacitance. 100% avalanche tested. Minimum Lot-to-Lot variations for robust device performance an.

2SC2229 Applications

* High voltage switching applications
* Driver stage audio amplifier applications
* Black and white TV video output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 1500 V VEBO Emitter-Bas

📥 Download Datasheet

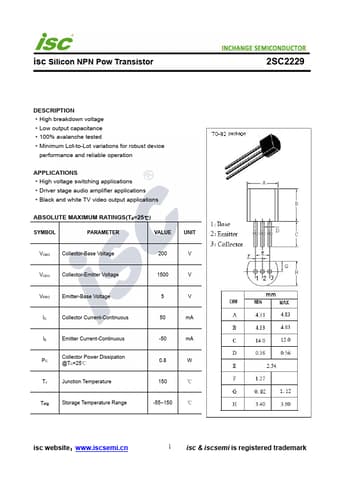

Preview of 2SC2229 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2229
Manufacturer
INCHANGE
File Size
171.72 KB
Datasheet
2SC2229-INCHANGE.pdf
Description
NPN Transistor
