2SC2238B, 2SC2238 - NPN Transistor

2SC2238B Description

isc Silicon NPN Power Transistor .
With TO-220 packaging. Complement to Type 2SA968 A B. Minimum Lot-to-Lot variations for robust device performance and reliable operation.

2SC2238B Applications

* AC-DC motor control
* Electronic ignition
* Alternator regulator ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE 2SC2238 160 VCBO Collector-Base Voltage 2SC2238A 180 2SC2238B 200 VCEO Collector-Emitter Voltage 2SC2238 160 2SC2238A 180 2SC2238B 200 VEBO Emitter-Ba

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SC2238B, 2SC2238. Please refer to the document for exact specifications by model.

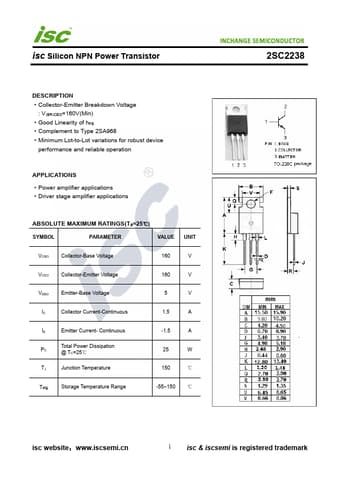

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2238B, 2SC2238
Manufacturer
INCHANGE
File Size
214.44 KB
Datasheet
2SC2238-INCHANGE.pdf
Description
NPN Transistor
Note
This datasheet PDF includes multiple part numbers: 2SC2238B, 2SC2238.
Please refer to the document for exact specifications by model.
